MAIN PARTS AND MATERIALS
NO.
PART NAME
MATERIAL
1
Nut
201
8
Bolt
2
Spring Washer
9
3
Handle
10
4
Gland Nut
11
Cap
CF8/CF8M/WCB
5
Packing
PTFE
12
Seat
PTFE/RPTFE
6
Thrust Washer
13
Body
7
Stem
14
Ball
304/316

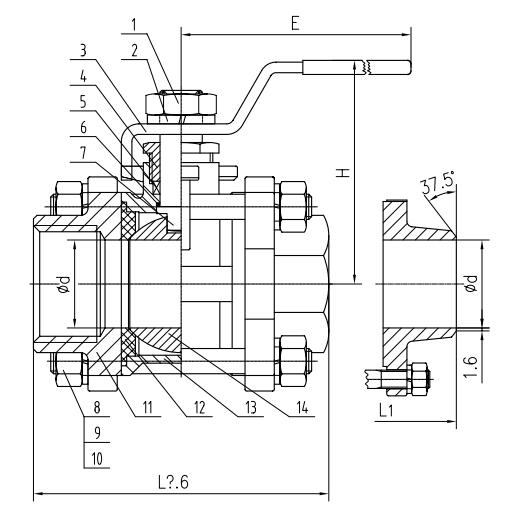

CONFIGURATION DIMENSION
SIZE
ITEM
1/4”
3/8”
1/2”
3/4”
1”
11/4”
11/2”
2”
21/2”
3”
4”
d
15
20
25
32
38
49
63
76
96
L
67
78
86
100
110
130
165
234
L1
75
90
98
112
131
190
244
H
59
61
74
82
99
105
120
137
157
E
95
115
125
150
160
200
265
310
